BIOQUANT QIMAGING PV1 Camera

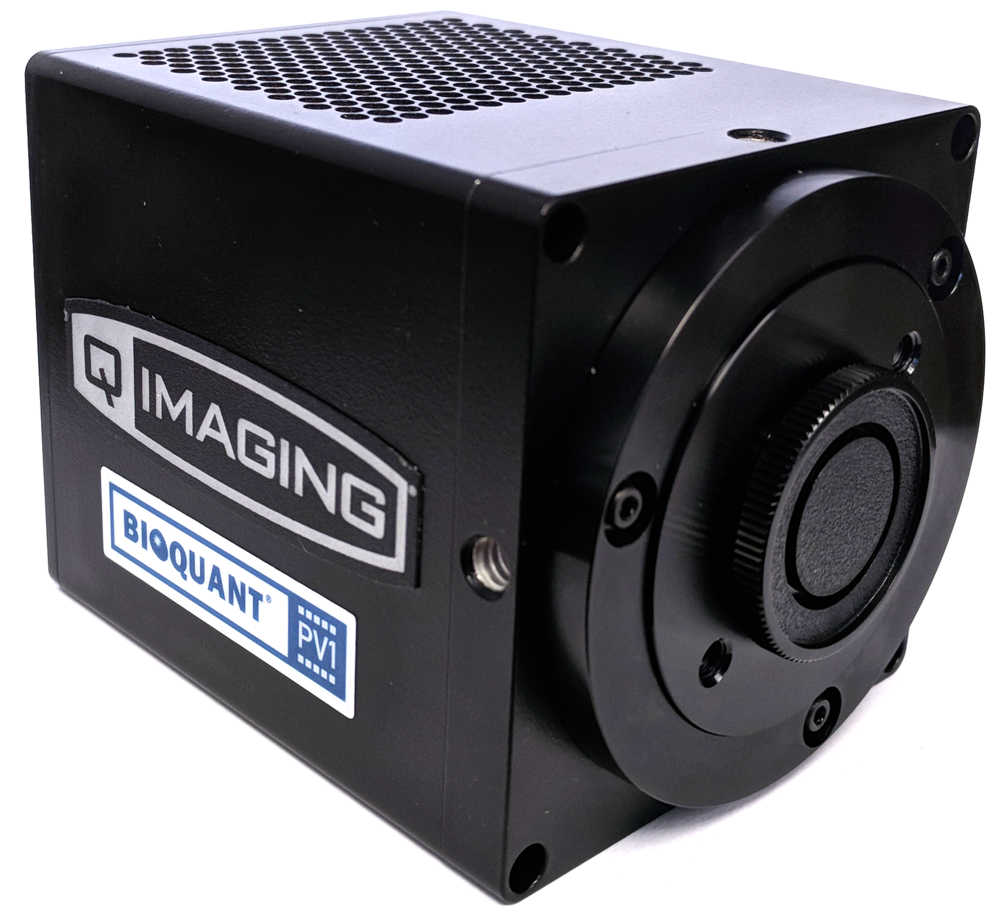

BIOQUANT PV1 DIGITAL CAMERA

Developed in cooperation with QIMAGING, the PV1 camera is built specifically for the imaging requirement of musculoskeletal research. This ensures high sensitivity in color imaging of real-time multi-channel fluorescence.

BIOQUANT LIVE IMAGE OVERLAY DRIVER

BIOQUANT has written a custom driver interface which allows measurement directly on the live image stream, without the need to capture or save an image file.




Technical Specifications

Sensor Specifications

CCD Model: Color Sony ICX-825

Sensor Size: 2/3 inch

Internal Bit Depth: 14-bit

Pixel Dimensions: 6.45µm x 6.45µm

Full Well Capacity: > 11,000e- per pixel



Control Specifications

Exposure: 25µs to 60s

Cooling: -15C at 22C Ambient

Master Gain: Off, Medium (5X), High (10X)

Independent RGB Gain: 1X to 10X per channel

Auto Adjustment:  Exposure, Color Balance

Imaging Presets: Unlimited

IMAGE Specifications

Capture Speed: Instantaneous

Frame Rate: 25fps at 1280x960

Image Size: 1280x960.

Image Bit Depth: 8-bit / channel (24-bit)



Interface Specifications

Bus Type: USB 3.0

OS Requirements: Windows 10/7 64bit

Power: 7.5 volts DC / 2.5 amps



Physical Specifications

Mount Type: C-Mount

Dimensions: 98mm x 76mm x 76mm

Mass: 0.7kg
